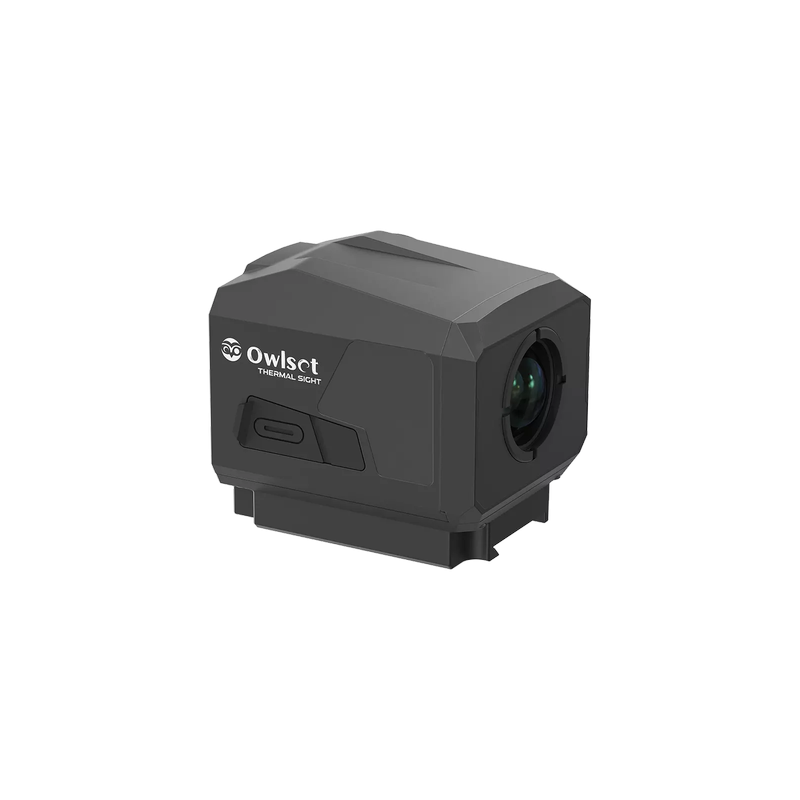

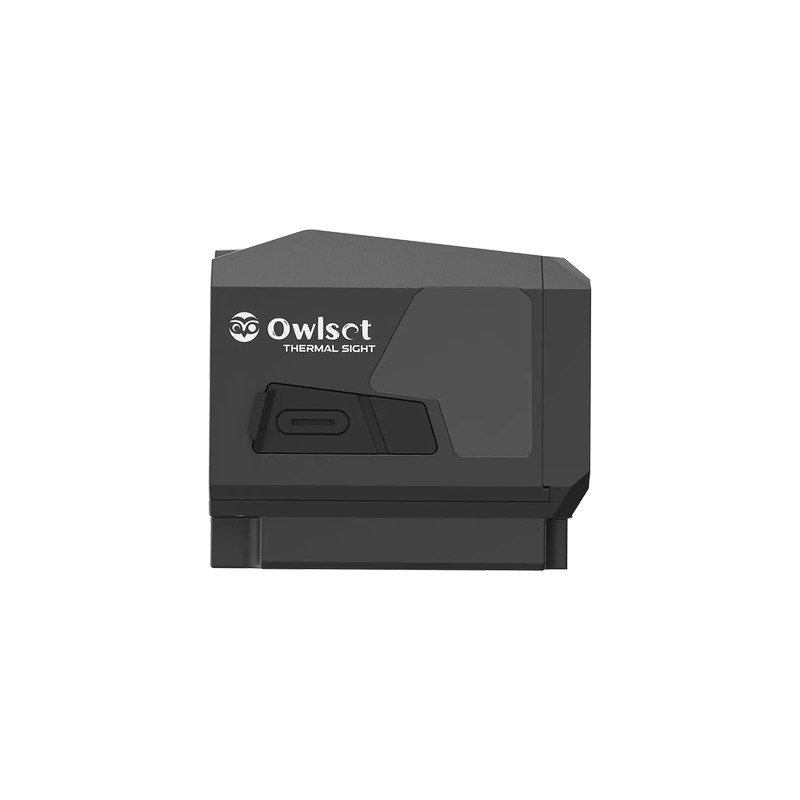

VECTOR OPTICS OWLSET HEIM ES X-NANO XPD – Compact Thermal Sight with Wi-Fi

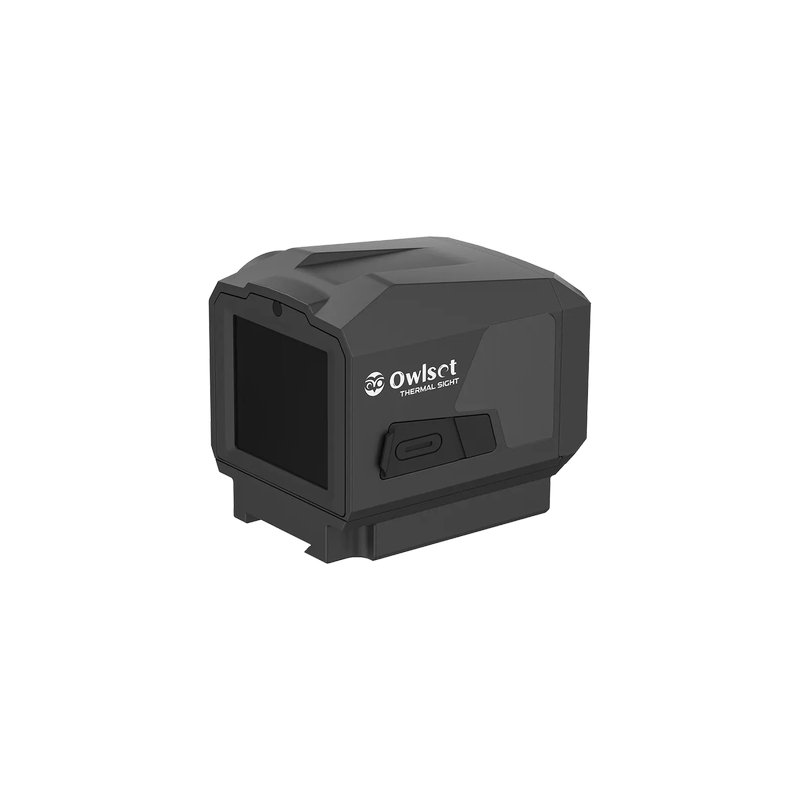

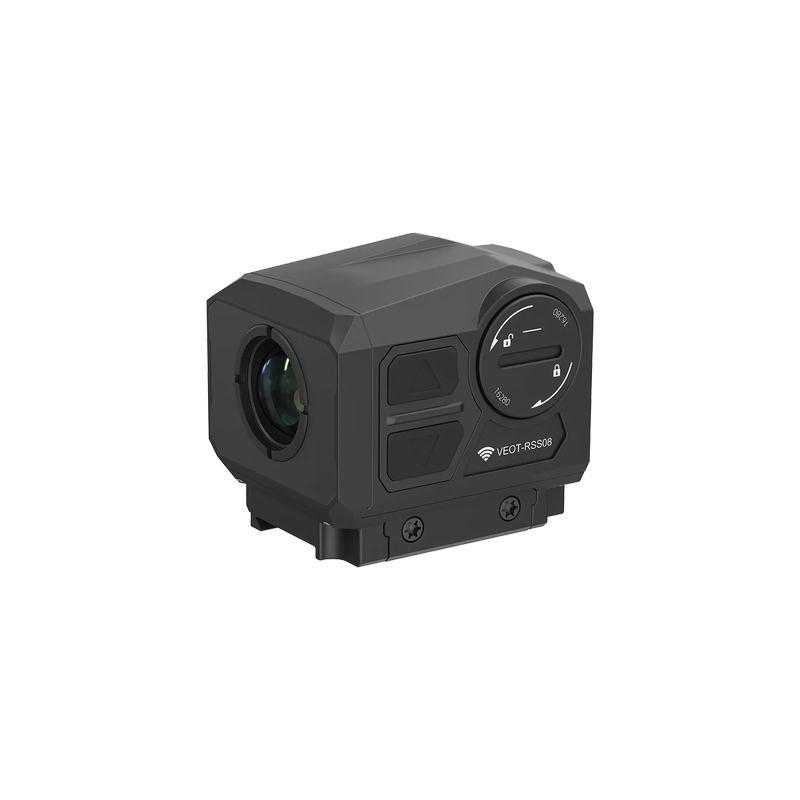

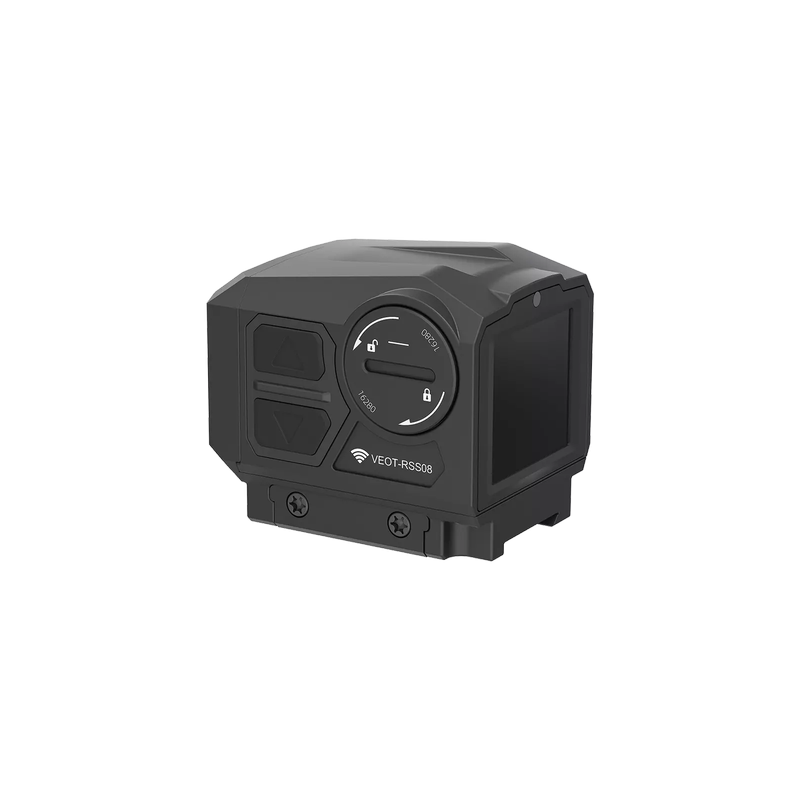

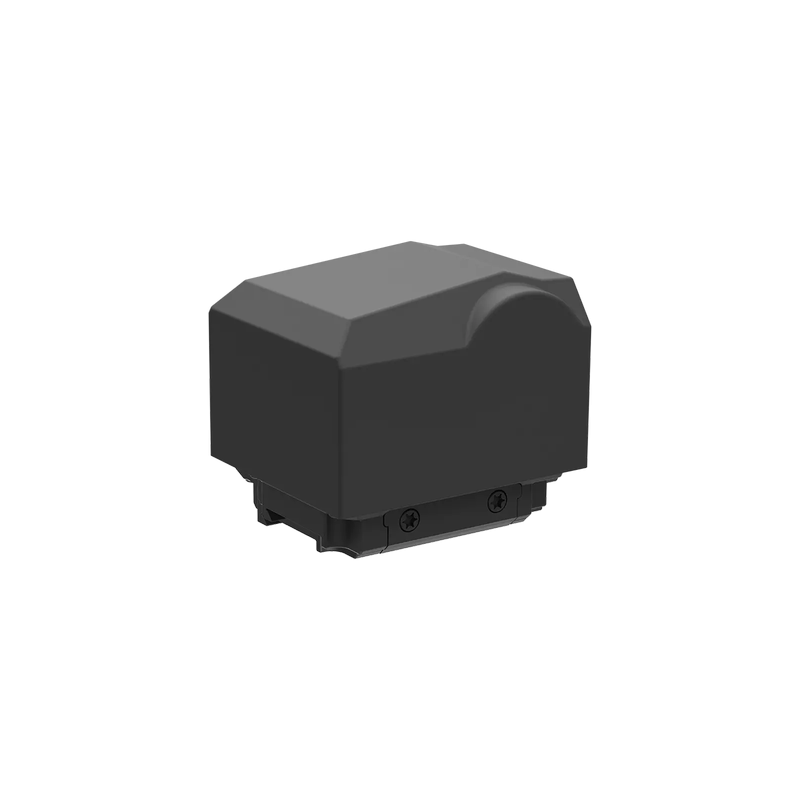

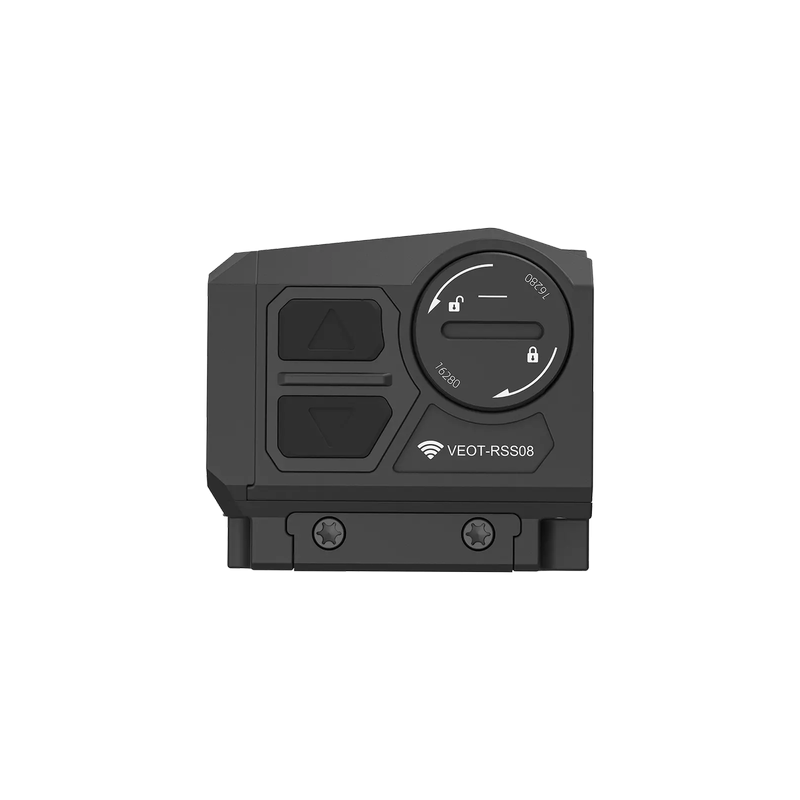

The VECTOR OPTICS OWLSET HEIM ES X-NANO XPD is an innovative miniature thermal sight combining the compact dimensions of a traditional red dot sight with advanced thermal imaging technology. Designed for handguns and AR-15 platforms, it enables heat signature detection even in complete darkness.

Equipped with a 256 × 192 thermal sensor, featuring a 12 µm pixel pitch and a 50 Hz refresh rate, it delivers smooth and detailed thermal imaging. Its advertised detection range reaches 600 meters, with target recognition up to 150 meters.

The integrated 1.4-inch touchscreen display provides easy access to 6 thermal color palettes and 10 selectable reticles in 5 colors: black, white, red, green and yellow. An automatic hot spot tracking function helps identify the hottest areas within the field of view.

Thanks to its built-in Wi-Fi connectivity, the X-NANO XPD can connect to a compatible smartphone for live thermal image viewing and access to connected features.

Weighing just 123 g, this thermal sight offers exceptional portability. Its rugged housing features IP66 protection against dust and water jets, along with 1,000 G shock resistance.

Powered by a rechargeable 16280 battery, it provides approximately 3.5 hours of runtime and supports convenient USB-C charging.

The VECTOR OPTICS ES X-NANO XPD offers a versatile thermal imaging solution in an exceptionally compact package.

Technical Specifications

• Brand: VECTOR OPTICS

• Series: OWLSET HEIM

• Model: ES X-NANO XPD VOD Wi-Fi

• Manufacturer reference: VEOT-RSS08

• Type: Compact digital thermal sight

• Thermal sensor resolution: 256 × 192 pixels

• Pixel pitch: 12 µm

• Thermal sensitivity: NETD ≤ 40 mK

• Refresh rate: 50 Hz

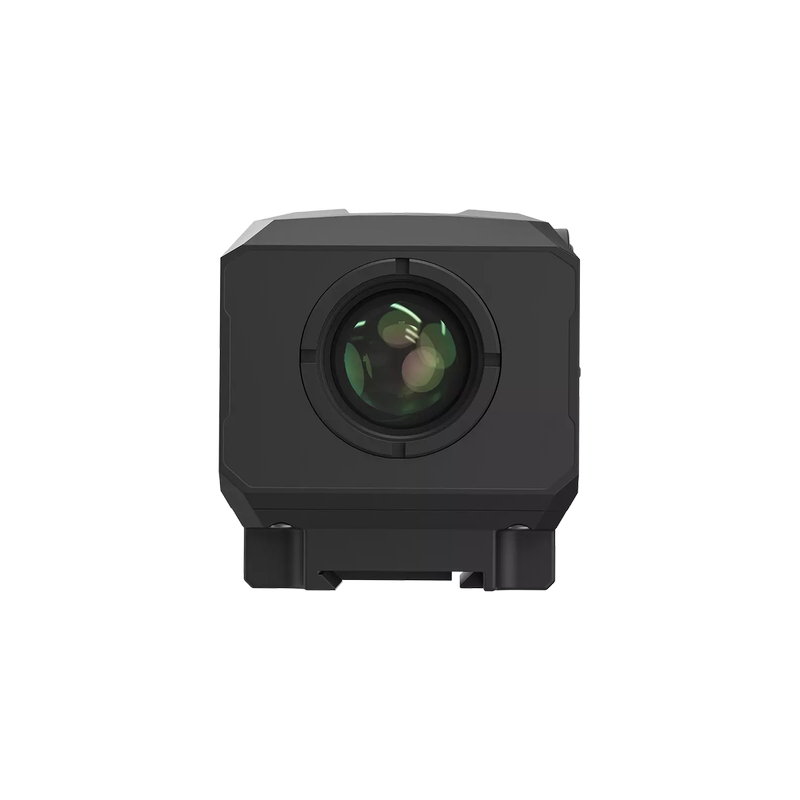

• Objective lens: 19 mm

• Base magnification: 0.5×

• Digital zoom: 1× / 2×

• Field of view: 13.5° × 10.1°

• Focus range: 5 m to infinity

• Detection range: Up to 600 meters

• Recognition range: Up to 150 meters

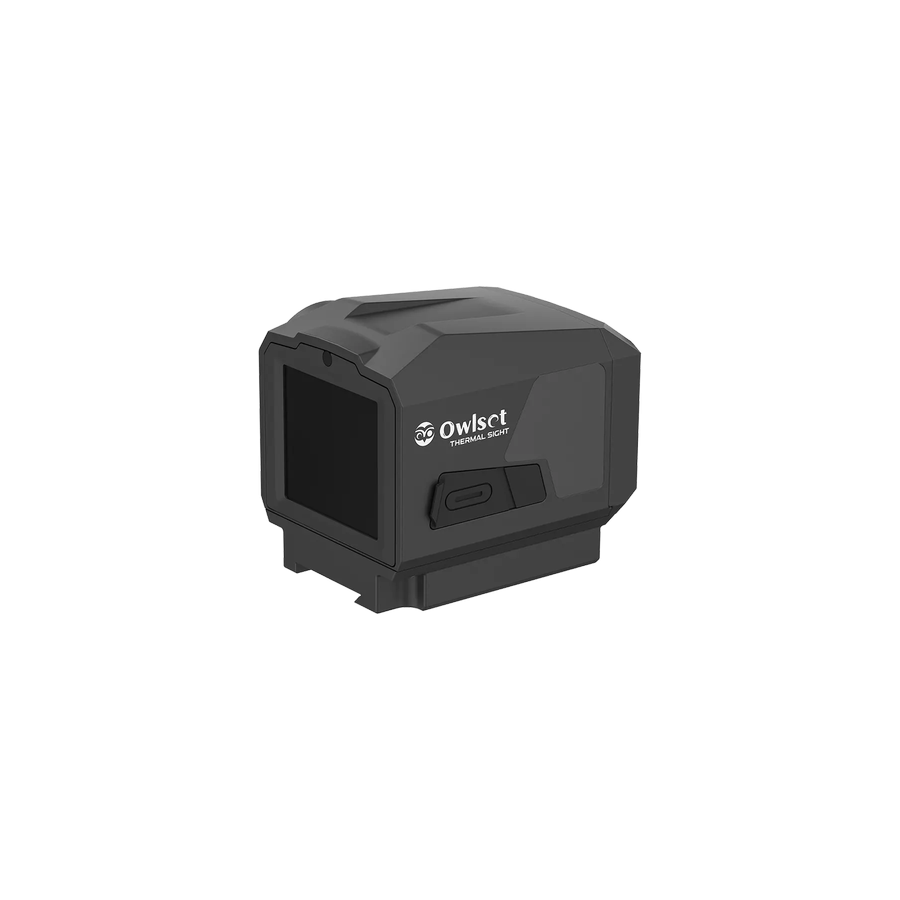

• Display: 1.4-inch touchscreen

• Thermal color palettes: 6

• Reticles: 10 options in 5 colors

• Automatic hot spot tracking: Yes

• Connectivity: Wi-Fi

• Power source: Rechargeable 16280 Li-ion battery

• Battery life: Approximately 3.5 hours

• Charging: USB-C

• Shock resistance: 1,000 G

• Protection rating: IP66

• Dimensions: Approximately 51 × 43 × 46 mm

• Weight: 123 g

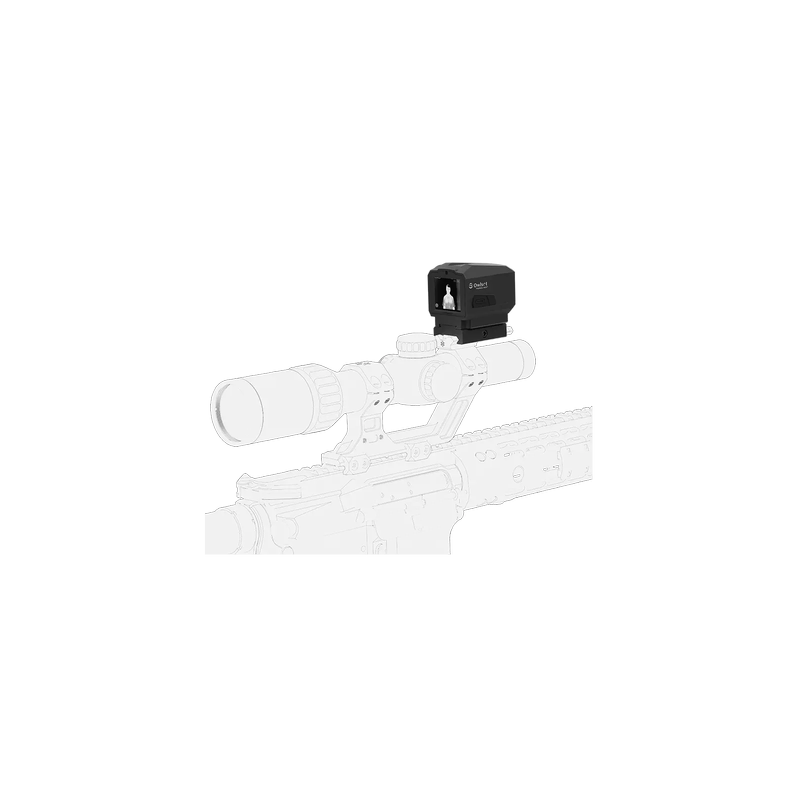

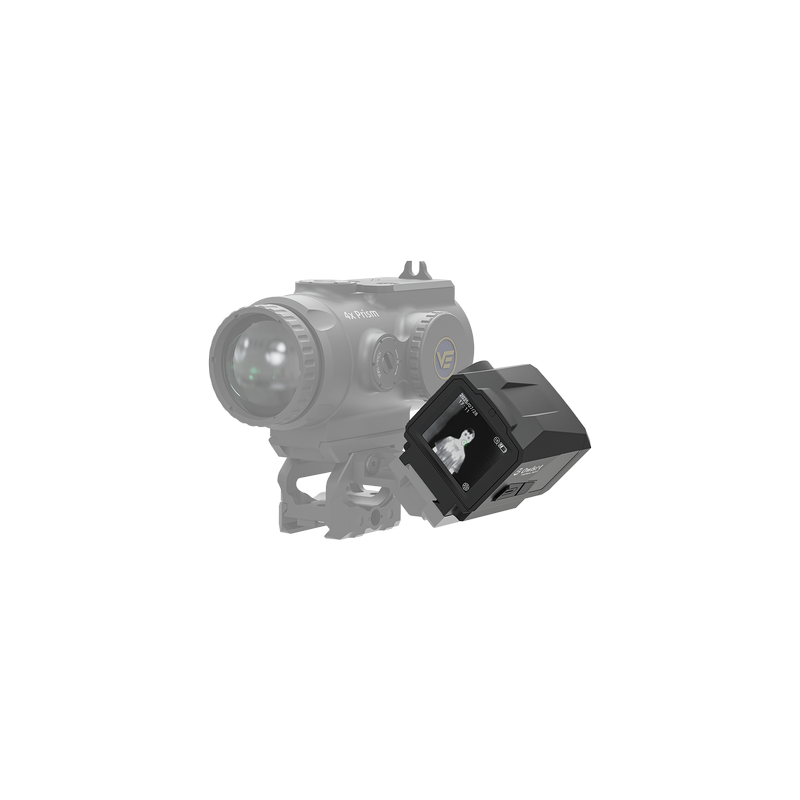

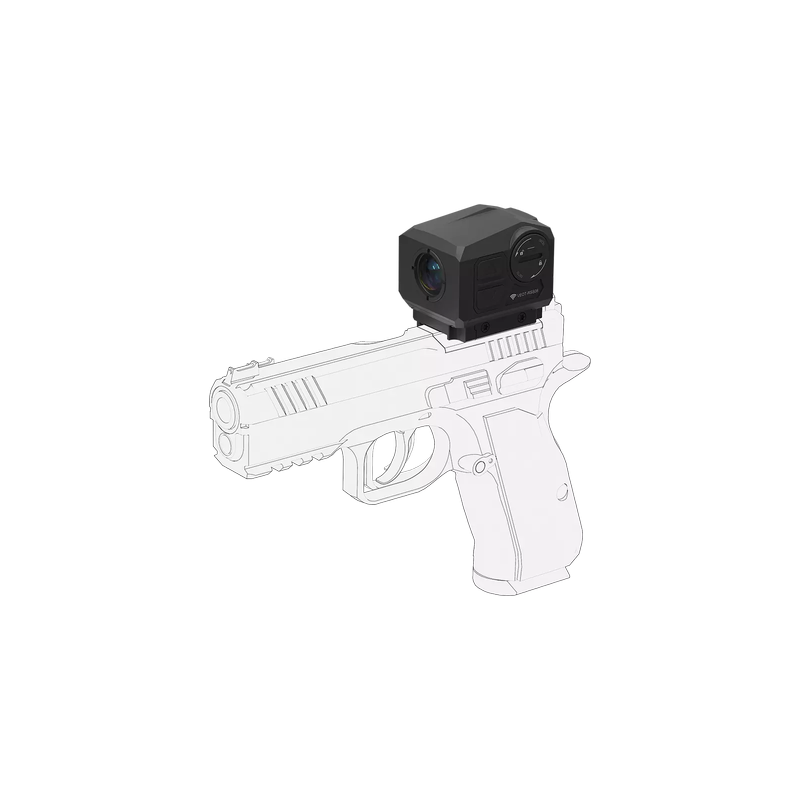

• Compatibility: Handguns and AR-15 platforms with suitable mounting systems

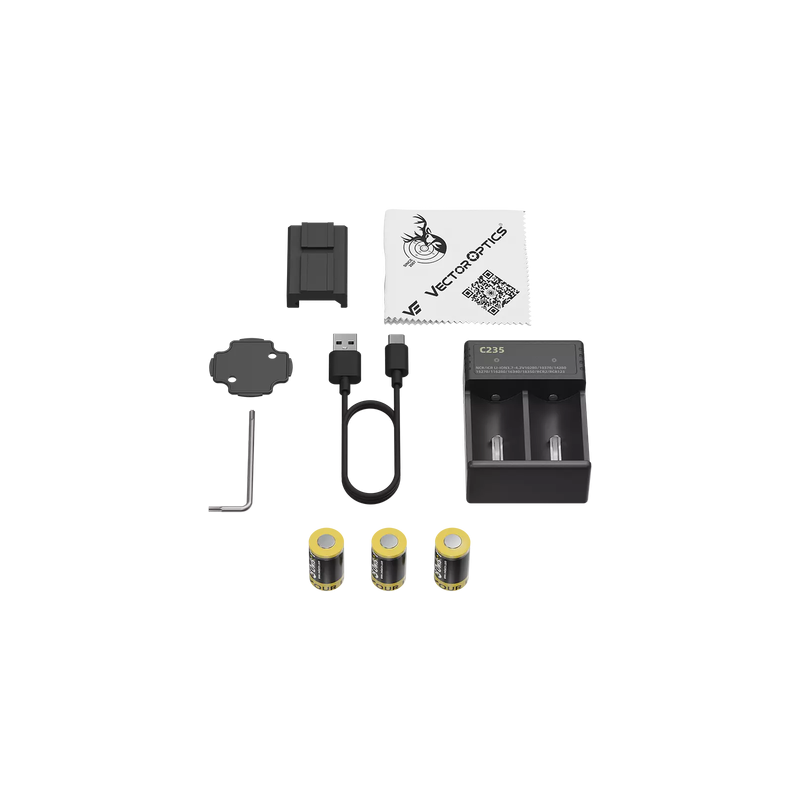

Included Accessories

• Picatinny mount

• Rechargeable 16280 batteries

• Battery charger

• USB-C cable

• Mounting tools

• Cleaning cloth

• User manual
